LibXR::WifiClient::Config Struct Reference

WiFi 连接配置 / WiFi connection configuration. More...

#include <wifi_client.hpp>

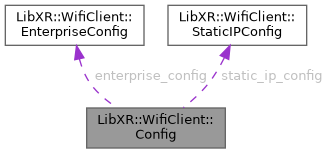

Collaboration diagram for LibXR::WifiClient::Config:

Data Fields
std::string	ssid
	SSID 名称 / SSID name.
std::string	password
	密码 / Password
Security	security = Security::WPA2_PSK
	安全类型 / Security type
EnterpriseConfig *	enterprise_config
	企业认证配置（可选） / Enterprise authentication config (optional)
StaticIPConfig *	static_ip_config
	静态 IP 配置（可选） / Static IP config (optional)
bool	use_dhcp = true
	是否使用 DHCP / Whether to use DHCP

Detailed Description

WiFi 连接配置 / WiFi connection configuration.

Definition at line 74 of file wifi_client.hpp.

Field Documentation

enterprise_config

EnterpriseConfig* LibXR::WifiClient::Config::enterprise_config

Initial value:

=
        nullptr

企业认证配置（可选） / Enterprise authentication config (optional)

Definition at line 80 of file wifi_client.hpp.

password

std::string LibXR::WifiClient::Config::password

密码 / Password

Definition at line 77 of file wifi_client.hpp.

security

Security LibXR::WifiClient::Config::security = Security::WPA2_PSK

安全类型 / Security type

Definition at line 78 of file wifi_client.hpp.

ssid

std::string LibXR::WifiClient::Config::ssid

SSID 名称 / SSID name.

Definition at line 76 of file wifi_client.hpp.

static_ip_config

StaticIPConfig* LibXR::WifiClient::Config::static_ip_config

Initial value:

=
        nullptr

静态 IP 配置（可选） / Static IP config (optional)

Definition at line 83 of file wifi_client.hpp.

use_dhcp

bool LibXR::WifiClient::Config::use_dhcp = true

是否使用 DHCP / Whether to use DHCP

Definition at line 86 of file wifi_client.hpp.

---

The documentation for this struct was generated from the following file:

• src/driver/wifi_client.hpp
