调用 Wait() 收消息的订阅者 / Subscriber that receives messages by calling Wait() More...

#include <sync.hpp>

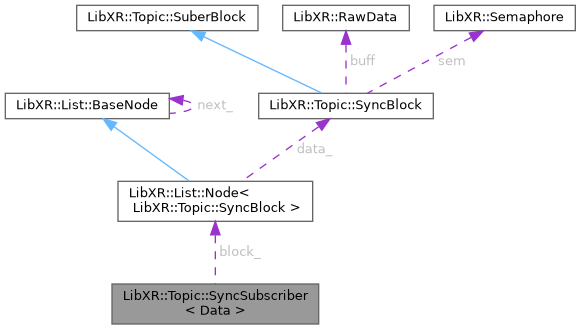

Collaboration diagram for LibXR::Topic::SyncSubscriber< Data >:

Public Member Functions
	SyncSubscriber (const char name, Data &data, Domain domain=nullptr)
	通过主题名称构造同步订阅者 / Construct a synchronous subscriber by topic name

	SyncSubscriber (Topic topic, Data &data)
	通过 `Topic` 句柄构造同步订阅者 / Construct a synchronous subscriber using a `Topic` handle

	SyncSubscriber (const SyncSubscriber &other)=delete
	禁止拷贝同步订阅者 / Copy construction is disabled for synchronous subscribers

SyncSubscriber &	operator= (const SyncSubscriber &other)=delete
	禁止拷贝赋值同步订阅者 / Copy assignment is disabled for synchronous subscribers

	SyncSubscriber (SyncSubscriber &&other) noexcept
	移动构造同步订阅者 / Move-construct one synchronous subscriber

SyncSubscriber &	operator= (SyncSubscriber &&other) noexcept
	移动赋值同步订阅者 / Move-assign one synchronous subscriber

ErrorCode	Wait (uint32_t timeout=UINT32_MAX)
	等待接收数据 / Wait for data reception

MicrosecondTimestamp	GetTimestamp () const
	获取最近一次接收的消息时间戳 / Get the latest received message timestamp

Data Fields
LockFreeList::Node< SyncBlock > *	block_ = nullptr
	订阅者数据块。Subscriber data block.

Detailed Description

template<typename Data>
class LibXR::Topic::SyncSubscriber< Data >

调用 Wait() 收消息的订阅者 / Subscriber that receives messages by calling Wait()

通过 Wait() 接收消息的同步订阅者 / Synchronous subscriber receiving messages via Wait()

Template Parameters

Data	订阅的数据类型 / Type of data being subscribed to
Data	订阅的数据类型 / Subscribed data type

Definition at line 225 of file topic.hpp.

Constructor & Destructor Documentation

◆ SyncSubscriber() [1/4]

template<typename Data >

LibXR::Topic::SyncSubscriber< Data >::SyncSubscriber	(	const char *	name,
		Data &	data,
		Domain *	domain = nullptr )

inline

通过主题名称构造同步订阅者 / Construct a synchronous subscriber by topic name

Parameters

name	主题名称 / Topic name
data	用来接收消息的对象 / Destination object receiving subscribed data
domain	可选的主题域 / Optional topic domain

Note: 包含初始化期动态内存分配，订阅者应长期存在 / Contains initialization-time dynamic allocation; subscribers are expected to be long-lived; 同步订阅者不会自建接收缓冲区，而是直接把收到的数据写进 data；data 必须至少活到订阅者不再使用为止 / Synchronous subscribers do not allocate their own receive buffer; they write incoming data directly into data, which must outlive the subscriber's use of it

Definition at line 60 of file sync.hpp.

      : SyncSubscriber(Topic(WaitTopic(name, UINT32_MAX, domain)), data)
  {
  }

◆ SyncSubscriber() [2/4]

template<typename Data >

LibXR::Topic::SyncSubscriber< Data >::SyncSubscriber	(	Topic	topic,
		Data &	data )

inline

通过 Topic 句柄构造同步订阅者 / Construct a synchronous subscriber using a Topic handle

Parameters

topic	订阅的主题 / Topic being subscribed to
data	用来接收消息的对象 / Destination object receiving subscribed data

Note: 包含初始化期动态内存分配，订阅者应长期存在 / Contains initialization-time dynamic allocation; subscribers are expected to be long-lived; 同步订阅者不会自建接收缓冲区，而是直接把收到的数据写进 data；data 必须至少活到订阅者不再使用为止 / Synchronous subscribers do not allocate their own receive buffer; they write incoming data directly into data, which must outlive the subscriber's use of it

Definition at line 76 of file sync.hpp.

  {
    Topic::CheckSubscriberType<Data>(topic);

    block_ = new LockFreeList::Node<SyncBlock>;
    block_->data_.type = SuberType::SYNC;
    block_->data_.timestamp = MicrosecondTimestamp();
    block_->data_.wait_state.store(SyncBlock::WAIT_IDLE, std::memory_order_relaxed);
    block_->data_.buff_addr = &data;
    block_->data_.copy_payload = &Topic::CopyPayload<Data>;
    topic.block_->data_.subers.Add(*block_);
  }

◆ SyncSubscriber() [3/4]

template<typename Data >

LibXR::Topic::SyncSubscriber< Data >::SyncSubscriber ( const SyncSubscriber< Data > & other )

delete

禁止拷贝同步订阅者 / Copy construction is disabled for synchronous subscribers

Parameters

other 待拷贝的同步订阅者 / Synchronous subscriber to copy from

◆ SyncSubscriber() [4/4]

template<typename Data >

LibXR::Topic::SyncSubscriber< Data >::SyncSubscriber ( SyncSubscriber< Data > && other )

inlinenoexcept

移动构造同步订阅者 / Move-construct one synchronous subscriber

Parameters

other 被转移的同步订阅者 / Synchronous subscriber to move from

Note: 这里只移动本地句柄指针；底层订阅块仍留在 topic 的订阅链表里，other 会被清成空句柄 / This moves only the local handle pointer; the underlying subscriber block stays registered in the topic list and other becomes empty

Definition at line 112 of file sync.hpp.

                                                  : block_(other.block_)
  {
    other.block_ = nullptr;
  }

Member Function Documentation

◆ GetTimestamp()

template<typename Data >

MicrosecondTimestamp LibXR::Topic::SyncSubscriber< Data >::GetTimestamp ( ) const

inline

获取最近一次接收的消息时间戳 / Get the latest received message timestamp

Returns: 最近一次接收的消息时间戳 / Returns the latest received message timestamp

Definition at line 192 of file sync.hpp.

192{ return block_->data_.timestamp; }

◆ operator=() [1/2]

template<typename Data >

SyncSubscriber & LibXR::Topic::SyncSubscriber< Data >::operator= ( const SyncSubscriber< Data > & other )

delete

禁止拷贝赋值同步订阅者 / Copy assignment is disabled for synchronous subscribers

Parameters

other 待拷贝的同步订阅者 / Synchronous subscriber to copy from

Returns: 当前同步订阅者 / Returns the current synchronous subscriber

◆ operator=() [2/2]

template<typename Data >

SyncSubscriber & LibXR::Topic::SyncSubscriber< Data >::operator= ( SyncSubscriber< Data > && other )

inlinenoexcept

移动赋值同步订阅者 / Move-assign one synchronous subscriber

Parameters

other 被转移的同步订阅者 / Synchronous subscriber to move from

Returns: 当前同步订阅者 / Returns the current synchronous subscriber

Note: 这里只改当前包装对象指向的订阅块，不会注销旧块；底层订阅块仍留在 topic 的订阅链表里，other 会被清成空句柄 / This only changes which subscriber block the current wrapper points to and does not unregister the old block; the underlying subscriber blocks stay in the topic list and other becomes empty

Definition at line 127 of file sync.hpp.

  {
    if (this != &other)
    {
      block_ = other.block_;
      other.block_ = nullptr;
    }
    return *this;
  }

◆ Wait()

template<typename Data >

ErrorCode LibXR::Topic::SyncSubscriber< Data >::Wait ( uint32_t timeout = UINT32_MAX )

inline

等待接收数据 / Wait for data reception

Parameters

timeout 超时时间，默认为 UINT32_MAX / Timeout period, default UINT32_MAX

Returns: 操作结果错误码 / Error code indicating the operation result

Note: 同一时刻只允许一个等待者；若已有挂起等待，会返回 ErrorCode::BUSY / Only one waiter is allowed at a time; if another wait is already pending, this returns ErrorCode::BUSY; 若发布恰好发生在超时边界，当前等待者仍会保留那次唤醒并最终返回 OK，不会把这次唤醒漏给下一次 Wait() / If a publish arrives right at the timeout boundary, the current waiter still keeps that wakeup and eventually returns OK instead of leaking the wakeup to a later Wait()

Definition at line 151 of file sync.hpp.

  {
    ASSERT(block_ != nullptr);

    auto& data = block_->data_;
    uint32_t expected = SyncBlock::WAIT_IDLE;
    if (!data.wait_state.compare_exchange_strong(expected, SyncBlock::WAITING,
                                                 std::memory_order_acq_rel,
                                                 std::memory_order_acquire))
    {
      return ErrorCode::BUSY;
    }

    auto wait_ans = data.sem.Wait(timeout);
    if (wait_ans == ErrorCode::OK)
    {
      data.wait_state.store(SyncBlock::WAIT_IDLE, std::memory_order_release);
      return ErrorCode::OK;
    }

    expected = SyncBlock::WAITING;
    if (data.wait_state.compare_exchange_strong(expected, SyncBlock::WAIT_IDLE,
                                                std::memory_order_acq_rel,
                                                std::memory_order_acquire))
    {
      return wait_ans;
    }

    ASSERT(data.wait_state.load(std::memory_order_acquire) == SyncBlock::WAIT_CLAIMED);

    auto finish_wait_ans = data.sem.Wait(UINT32_MAX);
    UNUSED(finish_wait_ans);
    ASSERT(finish_wait_ans == ErrorCode::OK);
    data.wait_state.store(SyncBlock::WAIT_IDLE, std::memory_order_release);
    return ErrorCode::OK;
  }

Field Documentation

◆ block_

template<typename Data >

LockFreeList::Node<SyncBlock>* LibXR::Topic::SyncSubscriber< Data >::block_ = nullptr

订阅者数据块。Subscriber data block.

Definition at line 194 of file sync.hpp.

The documentation for this class was generated from the following files:

src/middleware/message/subscriber/sync.hpp
src/middleware/message/topic.hpp
