STM32 UART 驱动实现 / STM32 UART driver implementation. More...

#include <stm32_uart.hpp>

Inheritance diagram for LibXR::STM32UART:

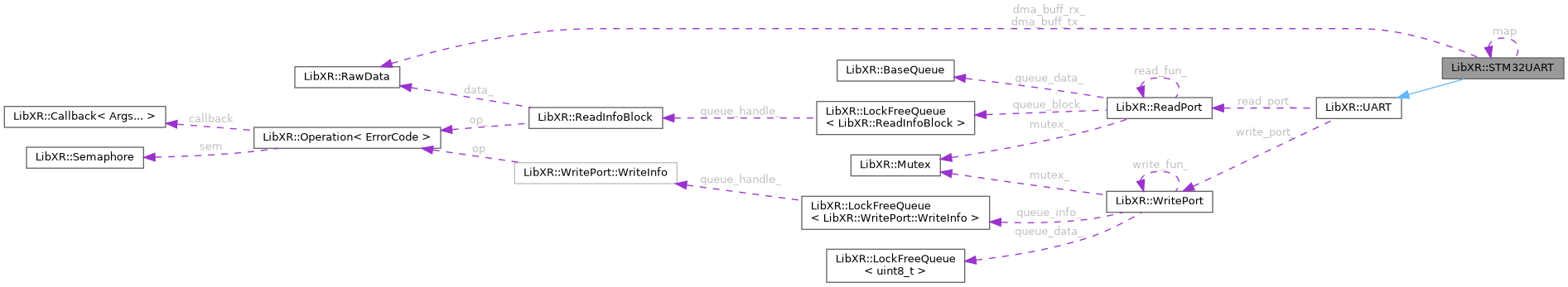

Collaboration diagram for LibXR::STM32UART:

Public Member Functions
	STM32UART (UART_HandleTypeDef *uart_handle, RawData dma_buff_rx, RawData dma_buff_tx, uint32_t tx_queue_size=5)
	构造 UART 对象 / Construct UART object

ErrorCode	SetConfig (UART::Configuration config)
	设置 UART 配置 / Sets the UART configuration

void	SetRxDMA ()

void	OnRxDataAvailable (bool in_isr)

Public Member Functions inherited from LibXR::UART
template<typename ReadPortType = ReadPort, typename WritePortType = WritePort>
	UART (ReadPortType read_port, WritePortType write_port)
	UART 构造函数 / UART constructor.

template<typename OperationType , typename = std::enable_if_t<std::is_base_of_v< WriteOperation, std::decay_t<OperationType>>>>
ErrorCode	Write (ConstRawData data, OperationType &&op, bool in_isr=false)

template<typename OperationType , typename = std::enable_if_t<std::is_base_of_v< ReadOperation, std::decay_t<OperationType>>>>
ErrorCode	Read (RawData data, OperationType &&op, bool in_isr=false)

Static Public Member Functions
static ErrorCode	WriteFun (WritePort &port, bool in_isr)

static ErrorCode	ReadFun (ReadPort &port, bool in_isr)

Data Fields
ReadPort	_read_port

WritePort	_write_port

LatestSnapshot< UART::Configuration >	requested_config_

UartRxConfigGate	rx_config_gate_

UartCircularDmaRxModel	rx_dma_model_

UartDmaTxModel< STM32UART >	tx_dma_model_

UART_HandleTypeDef *	uart_handle_

stm32_uart_id_t	id_ = STM32_UART_ID_ERROR

Data Fields inherited from LibXR::UART
ReadPort *	read_port_
	读取端口 / Read port

WritePort *	write_port_
	写入端口 / Write port

Static Public Attributes
static STM32UART *	map [STM32_UART_NUMBER] = {nullptr}

Private Member Functions
void	OnConfigRequested ()

bool	ApplyPendingConfig (bool in_isr)

bool	OnConfigApplied (bool)

void	StartCircularDmaRx (uint8_t *data, size_t size)
	通过 STM32 HAL 配置并启动 UART 循环 RX DMA / Configure and start circular UART RX DMA through STM32 HAL

size_t	GetCircularDmaRxRemaining () const
	获取 STM32 RX DMA 剩余传输计数 / Get the STM32 RX DMA remaining count

void	PrepareCircularDmaRxForCpu (uint8_t *data, size_t size)
	使循环 DMA RX 数据对 CPU 可见 / Make circular DMA RX data visible to the CPU

bool	StartDmaTx (uint8_t *data, size_t size, int block)
	通过 STM32 HAL 启动一个 active UART TX DMA 载荷 / Start one active UART TX DMA payload through STM32 HAL

Friends
class	UartCircularDmaRxModel

class	UartDmaTxModel< STM32UART >

Additional Inherited Members
Public Types inherited from LibXR::UART
enum class	Parity : uint8_t { NO_PARITY = 0 , EVEN = 1 , ODD = 2 }
	奇偶校验模式 / Parity mode More...

Detailed Description

STM32 UART 驱动实现 / STM32 UART driver implementation.

Warning: 使用循环 RX DMA 时，UART 全局中断与对应 RX DMA 中断必须配置为相同的 NVIC 抢占优先级。HAL 的 UART IDLE、DMA HT 和 DMA TC 路径都可能进入同一 RX event callback；本驱动依赖相同优先级保证这些入口不重入。 When circular RX DMA is enabled, the UART global IRQ and its RX DMA IRQ must use the same NVIC preemption priority and, on multicore devices, the same target core. UART IDLE, DMA HT, and DMA TC paths may all enter the same HAL RX event callback; they must remain one logical SPSC producer. Runtime configuration may execute on another core and is coordinated separately by UartRxConfigGate.

Definition at line 128 of file stm32_uart.hpp.

Constructor & Destructor Documentation

◆ STM32UART()

STM32UART::STM32UART	(	UART_HandleTypeDef *	uart_handle,
		RawData	dma_buff_rx,
		RawData	dma_buff_tx,
		uint32_t	tx_queue_size = 5 )

构造 UART 对象 / Construct UART object

Definition at line 220 of file stm32_uart.cpp.

    : UART(&_read_port, &_write_port),
      _read_port(dma_buff_rx.size_),
      _write_port(tx_queue_size, dma_buff_tx.size_ / 2),
      requested_config_(STM32_UART_GetConfig(uart_handle)),
      rx_dma_model_(dma_buff_rx),
      tx_dma_model_(*this, _write_port, dma_buff_tx),
      uart_handle_(uart_handle),
      id_(stm32_uart_get_id(uart_handle_->Instance))
{
  ASSERT(id_ != STM32_UART_ID_ERROR);

  map[id_] = this;

  if ((uart_handle->Init.Mode & UART_MODE_TX) == UART_MODE_TX)
  {
    ASSERT(uart_handle_->hdmatx != NULL);
    _write_port = WriteFun;
  }

  SetRxDMA();
}

Member Function Documentation

◆ ApplyPendingConfig()

bool STM32UART::ApplyPendingConfig ( bool in_isr )

private

Definition at line 261 of file stm32_uart.cpp.

{
  if (!rx_config_gate_.TryEnterConfig())
  {
    return false;
  }

  UART::Configuration config{};
  (void)requested_config_.LoadLatest(config);

  HAL_UART_DeInit(uart_handle_);
  uart_handle_->Init.BaudRate = config.baudrate;

  switch (config.parity)
  {
    case UART::Parity::NO_PARITY:
      uart_handle_->Init.Parity = UART_PARITY_NONE;
      uart_handle_->Init.WordLength = UART_WORDLENGTH_8B;
      break;
    case UART::Parity::EVEN:
      uart_handle_->Init.Parity = UART_PARITY_EVEN;
      uart_handle_->Init.WordLength = UART_WORDLENGTH_9B;
      break;
    case UART::Parity::ODD:
      uart_handle_->Init.Parity = UART_PARITY_ODD;
      uart_handle_->Init.WordLength = UART_WORDLENGTH_9B;
      break;
    default:
      DEV_ASSERT_FROM_CALLBACK(false, in_isr);
      return true;
  }

  switch (config.stop_bits)
  {
    case 1:
      uart_handle_->Init.StopBits = UART_STOPBITS_1;
      break;
    case 2:
      uart_handle_->Init.StopBits = UART_STOPBITS_2;
      break;
    default:
      DEV_ASSERT_FROM_CALLBACK(false, in_isr);
      return true;
  }

  if (HAL_UART_Init(uart_handle_) != HAL_OK)
  {
    DEV_ASSERT_FROM_CALLBACK(false, in_isr);
    return true;
  }

  SetRxDMA();
  return true;
}

◆ GetCircularDmaRxRemaining()

size_t LibXR::STM32UART::GetCircularDmaRxRemaining ( ) const

inlinenodiscardprivate

获取 STM32 RX DMA 剩余传输计数 / Get the STM32 RX DMA remaining count

Returns: DMA 尚未写入的字节数 / Number of bytes not yet written by DMA

Definition at line 189 of file stm32_uart.hpp.

  {
    return __HAL_DMA_GET_COUNTER(uart_handle_->hdmarx);
  }

◆ OnConfigApplied()

bool LibXR::STM32UART::OnConfigApplied ( bool )

inlineprivate

Definition at line 166 of file stm32_uart.hpp.

  {
    rx_config_gate_.LeaveConfig();
    return true;
  }

◆ OnConfigRequested()

void LibXR::STM32UART::OnConfigRequested ( )

inlineprivate

Definition at line 164 of file stm32_uart.hpp.

164{ rx_config_gate_.RequestConfig(); }

◆ OnRxDataAvailable()

void STM32UART::OnRxDataAvailable ( bool in_isr )

Definition at line 334 of file stm32_uart.cpp.

{
  if (!rx_config_gate_.TryEnterRx())
  {
    return;
  }

  rx_dma_model_.OnDataAvailable(*this, _read_port, in_isr);
  if (rx_config_gate_.LeaveRx())
  {
    tx_dma_model_.RequestConfig(in_isr);
  }
}

◆ PrepareCircularDmaRxForCpu()

void LibXR::STM32UART::PrepareCircularDmaRxForCpu	(	uint8_t *	data,
		size_t	size )

inlineprivate

使循环 DMA RX 数据对 CPU 可见 / Make circular DMA RX data visible to the CPU

Parameters

data	DMA 接收缓冲区起始地址 / DMA receive buffer start address
size	接收缓冲区字节数 / Receive buffer capacity in bytes

Definition at line 199 of file stm32_uart.hpp.

  {
    STM32_InvalidateDCacheByAddr(data, size);
  }

◆ ReadFun()

ErrorCode STM32UART::ReadFun	(	ReadPort &	port,
		bool	in_isr )

static

Definition at line 201 of file stm32_uart.cpp.

201{ return ErrorCode::PENDING; }

LibXR::ErrorCode::PENDING

@ PENDING

等待中 | Pending

◆ SetConfig()

ErrorCode STM32UART::SetConfig ( UART::Configuration config )

virtual

设置 UART 配置 / Sets the UART configuration

Parameters

config UART 配置信息 / UART configuration settings

Returns: 返回操作状态，成功时返回 ErrorCode::OK，否则返回相应错误码 / Returns the operation status, ErrorCode::OK if successful, otherwise an error code

该方法为纯虚函数，子类必须实现具体的 UART 配置逻辑。 This is a pure virtual function. Subclasses must implement the specific UART configuration logic.

Implements LibXR::UART.

Definition at line 244 of file stm32_uart.cpp.

{
  if ((config.stop_bits != 1U) && (config.stop_bits != 2U))
  {
    return ErrorCode::ARG_ERR;
  }
  if ((config.parity != UART::Parity::NO_PARITY) &&
      (config.parity != UART::Parity::EVEN) && (config.parity != UART::Parity::ODD))
  {
    return ErrorCode::ARG_ERR;
  }

  requested_config_.Store(config);
  tx_dma_model_.RequestConfig(false);
  return ErrorCode::OK;
}

◆ SetRxDMA()

void STM32UART::SetRxDMA ( )

Definition at line 316 of file stm32_uart.cpp.

{
  if ((uart_handle_->Init.Mode & UART_MODE_RX) == UART_MODE_RX)
  {
    ASSERT(uart_handle_->hdmarx != NULL);

    rx_dma_model_.Start(*this);
    _read_port = ReadFun;
  }
}

◆ StartCircularDmaRx()

void LibXR::STM32UART::StartCircularDmaRx	(	uint8_t *	data,
		size_t	size )

inlineprivate

通过 STM32 HAL 配置并启动 UART 循环 RX DMA / Configure and start circular UART RX DMA through STM32 HAL

Parameters

data	DMA 可写的接收缓冲区 / DMA-writable receive buffer
size	接收缓冲区字节数 / Receive buffer capacity in bytes

Definition at line 178 of file stm32_uart.hpp.

  {
    uart_handle_->hdmarx->Init.Mode = DMA_CIRCULAR;
    HAL_DMA_Init(uart_handle_->hdmarx);
    HAL_UARTEx_ReceiveToIdle_DMA(uart_handle_, data, size);
  }

◆ StartDmaTx()

bool STM32UART::StartDmaTx	(	uint8_t *	data,
		size_t	size,
		int	block )

private

通过 STM32 HAL 启动一个 active UART TX DMA 载荷 / Start one active UART TX DMA payload through STM32 HAL

Parameters

data	DMA 可读的载荷缓冲区 / DMA-readable payload buffer
size	载荷字节数 / Payload size in bytes
block	active 双缓冲块索引，STM32 HAL 不使用 / Active double-buffer block index, unused by STM32 HAL

Returns: HAL 接受 DMA 传输时返回 true / True when HAL accepts the DMA transfer

Definition at line 377 of file stm32_uart.cpp.

{
  STM32_CleanDCacheByAddr(data, size);
  return HAL_UART_Transmit_DMA(uart_handle_, data, size) == HAL_OK;
}

◆ WriteFun()

ErrorCode STM32UART::WriteFun	(	WritePort &	port,
		bool	in_isr )

static

Definition at line 195 of file stm32_uart.cpp.

{
  auto* uart = LibXR::ContainerOf(&port, &STM32UART::_write_port);
  return uart->tx_dma_model_.Submit(in_isr);
}

Friends And Related Symbol Documentation

◆ UartCircularDmaRxModel

friend class UartCircularDmaRxModel

friend

Definition at line 130 of file stm32_uart.hpp.

◆ UartDmaTxModel< STM32UART >

friend class UartDmaTxModel< STM32UART >

friend

Definition at line 130 of file stm32_uart.hpp.

Field Documentation

◆ _read_port

ReadPort LibXR::STM32UART::_read_port

Definition at line 149 of file stm32_uart.hpp.

◆ _write_port

WritePort LibXR::STM32UART::_write_port

Definition at line 150 of file stm32_uart.hpp.

◆ id_

stm32_uart_id_t LibXR::STM32UART::id_ = STM32_UART_ID_ERROR

Definition at line 159 of file stm32_uart.hpp.

◆ map

STM32UART * STM32UART::map = {nullptr}

static

Definition at line 161 of file stm32_uart.hpp.

◆ requested_config_

LatestSnapshot<UART::Configuration> LibXR::STM32UART::requested_config_

Definition at line 152 of file stm32_uart.hpp.

◆ rx_config_gate_

UartRxConfigGate LibXR::STM32UART::rx_config_gate_

Definition at line 153 of file stm32_uart.hpp.

◆ rx_dma_model_

UartCircularDmaRxModel LibXR::STM32UART::rx_dma_model_

Definition at line 154 of file stm32_uart.hpp.

◆ tx_dma_model_

UartDmaTxModel<STM32UART> LibXR::STM32UART::tx_dma_model_

Definition at line 155 of file stm32_uart.hpp.

◆ uart_handle_

UART_HandleTypeDef* LibXR::STM32UART::uart_handle_

Definition at line 157 of file stm32_uart.hpp.

The documentation for this class was generated from the following files:

driver/st/stm32_uart.hpp
driver/st/stm32_uart.cpp
