LibXR::UART Class Reference

通用异步收发传输（UART）基类 / Abstract base class for Universal Asynchronous Receiver-Transmitter (UART) More...

#include <uart.hpp>

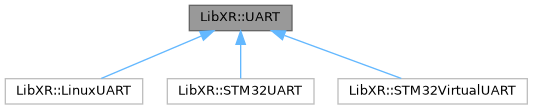

Inheritance diagram for LibXR::UART:

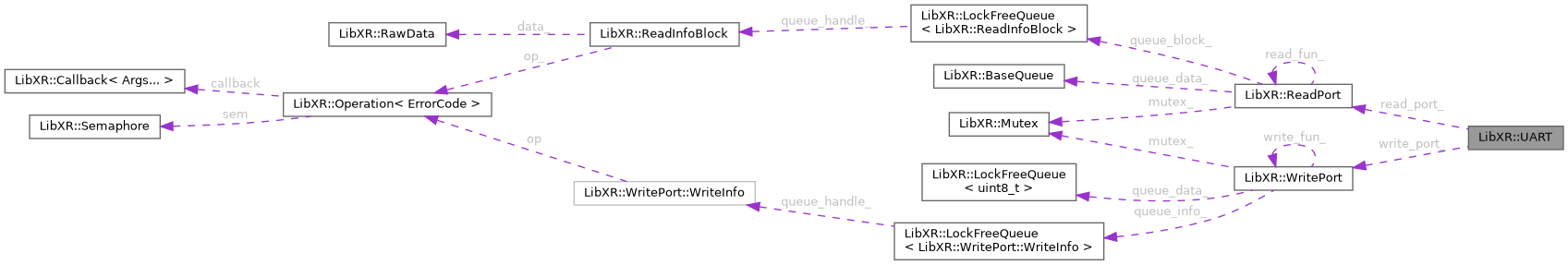

Collaboration diagram for LibXR::UART:

Data Structures
struct	Configuration
	UART 配置结构体 / UART configuration structure. More...

Public Types
enum class	Parity : uint8_t { NO_PARITY = 0 , EVEN = 1 , ODD = 2 }
	奇偶校验模式 / Parity mode More...

Public Member Functions
template<typename ReadPortType = ReadPort, typename WritePortType = WritePort>
	UART (ReadPortType *read_port, WritePortType *write_port)
	UART 构造函数 / UART constructor.
virtual ErrorCode	SetConfig (Configuration config)=0
	设置 UART 配置 / Sets the UART configuration
template<typename OperationType , typename = std::enable_if_t<std::is_base_of_v< WriteOperation, std::decay_t<OperationType>>>>
ErrorCode	Write (ConstRawData data, OperationType &&op, bool in_isr=false)
template<typename OperationType , typename = std::enable_if_t<std::is_base_of_v< ReadOperation, std::decay_t<OperationType>>>>
ErrorCode	Read (RawData data, OperationType &&op, bool in_isr=false)

Data Fields
ReadPort *	read_port_
	读取端口 / Read port
WritePort *	write_port_
	写入端口 / Write port

Detailed Description

通用异步收发传输（UART）基类 / Abstract base class for Universal Asynchronous Receiver-Transmitter (UART)

该类定义了 UART 设备的基本接口，包括配置和数据传输端口。 This class defines the basic interface for a UART device, including configuration and data transmission ports.

Definition at line 18 of file uart.hpp.

Member Enumeration Documentation

Parity

enum class LibXR::UART::Parity : uint8_t

strong

奇偶校验模式 / Parity mode

指定 UART 传输时的奇偶校验模式。 Specifies the parity mode used in UART transmission.

Enumerator
NO_PARITY	无校验 / No parity
EVEN	偶校验 / Even parity
ODD	奇校验 / Odd parity

Definition at line 28 of file uart.hpp.

  {
    NO_PARITY = 0,
    EVEN = 1,
    ODD = 2
  };

Constructor & Destructor Documentation

UART()

template<typename ReadPortType = ReadPort, typename WritePortType = WritePort>

LibXR::UART::UART ( ReadPortType * read_port, WritePortType * write_port )

inline

UART 构造函数 / UART constructor.

Parameters

rx_buffer_size	接收缓冲区大小 / Receive buffer size
tx_queue_size	发送队列大小 / Transmit queue size
tx_buffer_size	发送缓冲区大小 / Transmit buffer size

该构造函数初始化 UART 的读取和写入端口。 This constructor initializes the read and write ports of the UART.

Definition at line 66 of file uart.hpp.

      : read_port_(read_port), write_port_(write_port)
  {
  }

Member Function Documentation

Read()

template<typename OperationType , typename = std::enable_if_t<std::is_base_of_v< ReadOperation, std::decay_t<OperationType>>>>

ErrorCode LibXR::UART::Read ( RawData data, OperationType && op, bool in_isr = false )

inline

Definition at line 92 of file uart.hpp.

  {
    return (*read_port_)(data, std::forward<OperationType>(op), in_isr);
  }

SetConfig()

virtual ErrorCode LibXR::UART::SetConfig ( Configuration config )

pure virtual

设置 UART 配置 / Sets the UART configuration

Parameters

config

UART 配置信息 / UART configuration settings

Returns

返回操作状态，成功时返回 ErrorCode::OK，否则返回相应错误码 / Returns the operation status, ErrorCode::OK if successful, otherwise an error code

该方法为纯虚函数，子类必须实现具体的 UART 配置逻辑。 This is a pure virtual function. Subclasses must implement the specific UART configuration logic.

Implemented in LibXR::CH32UART, LibXR::LinuxUART, LibXR::STM32UART, and LibXR::USB::CDCUart.

Write()

template<typename OperationType , typename = std::enable_if_t<std::is_base_of_v< WriteOperation, std::decay_t<OperationType>>>>

ErrorCode LibXR::UART::Write ( ConstRawData data, OperationType && op, bool in_isr = false )

inline

Definition at line 85 of file uart.hpp.

  {
    return (*write_port_)(data, std::forward<OperationType>(op), in_isr);
  }

Field Documentation

read_port_

ReadPort* LibXR::UART::read_port_

读取端口 / Read port

Definition at line 53 of file uart.hpp.

write_port_

WritePort* LibXR::UART::write_port_

写入端口 / Write port

Definition at line 54 of file uart.hpp.

---

The documentation for this class was generated from the following file:

• src/driver/uart.hpp
