定时器类，实现周期性任务调度 Timer class for scheduling periodic tasks More...

#include <timer.hpp>

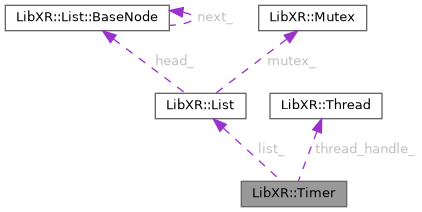

Collaboration diagram for LibXR::Timer:

[legend]

Data Structures
class	ControlBlock
	控制块类，存储任务信息 Control block class for storing task information More...

Public Types
typedef LibXR::List::Node< ControlBlock > *	TimerHandle
	定时器任务句柄 Timer task handle

Static Public Member Functions
template<typename ArgType >
static TimerHandle	CreateTask (void(*fun)(ArgType), ArgType arg, uint32_t cycle)
	创建定时任务 Creates a periodic task

static void	Start (TimerHandle handle)
	启动定时任务 Starts a periodic task

static void	Stop (TimerHandle handle)
	停止定时任务 Stops a periodic task

static void	SetCycle (TimerHandle handle, uint32_t cycle)
	设置定时任务的周期 Sets the cycle of a periodic task

static void	RefreshThreadFunction (void *)
	定时器管理线程函数 Timer management thread function

static void	Remove (TimerHandle handle)
	删除定时任务 Removes a periodic task

static void	Add (TimerHandle handle)
	添加定时任务 Adds a periodic task

static void	Refresh ()
	刷新定时任务状态 Refreshes the state of periodic tasks

static void	RefreshTimerInIdle ()
	在空闲时刷新定时器 Refreshes the timer during idle time

Static Public Attributes
static LibXR::List *	list_ = nullptr
	定时任务列表 List of registered tasks

static Thread	thread_handle_
	定时器管理线程 Timer management thread

static LibXR::Thread::Priority	priority_
	线程优先级 Thread priority

static uint32_t	stack_depth_
	线程栈深度 Thread stack depth

Detailed Description

定时器类，实现周期性任务调度 Timer class for scheduling periodic tasks

该定时器支持多任务调度，可用于执行周期性任务，如定时回调函数调用。 Timer 提供任务创建、启动、停止、删除及周期调整等功能，并使用 Thread::SleepUntil 实现精确调度。

This timer supports multi-task scheduling and can be used to execute periodic tasks, such as invoking callback functions at regular intervals. It provides task creation, start, stop, delete, and cycle adjustment functionalities, utilizing Thread::SleepUntil for precise scheduling.

Definition at line 26 of file timer.hpp.

Member Typedef Documentation

◆ TimerHandle

typedef LibXR::List::Node<ControlBlock>* LibXR::Timer::TimerHandle

定时器任务句柄 Timer task handle

Definition at line 50 of file timer.hpp.

Member Function Documentation

◆ Add()

static void LibXR::Timer::Add ( TimerHandle handle )

inlinestatic

添加定时任务 Adds a periodic task

Parameters

handle 任务句柄 Timer handle to add

Definition at line 169 of file timer.hpp.

  {
    ASSERT(!handle->next_);

    if (!LibXR::Timer::list_)
    {
      LibXR::Timer::list_ = new LibXR::List();
#ifdef LIBXR_NOT_SUPPORT_MUTI_THREAD
#else
      thread_handle_.Create<void *>(nullptr, RefreshThreadFunction, "libxr_timer_task",
                                    stack_depth_, priority_);
#endif
    }
    list_->Add(*handle);
  }

◆ CreateTask()

template<typename ArgType >

static TimerHandle LibXR::Timer::CreateTask	(	void(*)(ArgType)	fun,
		ArgType	arg,
		uint32_t	cycle
	)

inlinestatic

创建定时任务 Creates a periodic task

Template Parameters

ArgType 任务参数类型 Type of task argument

Parameters

fun	定时执行的任务函数 Function to execute periodically
arg	任务参数 Argument for the function
cycle	任务周期（毫秒） Task execution cycle (milliseconds)

Returns: 任务句柄 TimerHandle pointing to the created task

该方法创建一个新的周期性任务，任务将在 cycle 毫秒的周期内运行。若 cycle 小于等于 0，则会触发 ASSERT 断言。

This method creates a new periodic task that runs in a cycle of cycle milliseconds. If cycle is less than or equal to 0, it triggers an ASSERT assertion.

Definition at line 69 of file timer.hpp.

  {
    ASSERT(cycle > 0);

    typedef struct
    {
      LibXR::List::Node<ControlBlock> ctrl_block;
      ArgType arg;
      void (*fun)(ArgType);
    } Data;

    Data *data = new Data;
    data->fun = fun;
    data->arg = arg;

    data->ctrl_block.data_.handle = data;
    data->ctrl_block.data_.fun_ = [](void *arg)
    {
      Data *data = reinterpret_cast<Data *>(arg);
      data->fun(data->arg);
    };
    data->ctrl_block.data_.count_ = 0;
    data->ctrl_block.data_.cycle_ = cycle;
    data->ctrl_block.data_.enable_ = false;

    return &data->ctrl_block;
  }

◆ Refresh()

static void LibXR::Timer::Refresh ( )

inlinestatic

刷新定时任务状态 Refreshes the state of periodic tasks

该方法遍历任务列表，并检查任务是否应当运行。若任务启用，并且 count_ 达到 cycle_，则执行任务并重置计数器。

This method iterates through the task list and checks whether a task should run. If a task is enabled and its count_ reaches cycle_, the task is executed and the counter is reset.

Definition at line 197 of file timer.hpp.

  {
    if (!LibXR::Timer::list_)
    {
      LibXR::Timer::list_ = new LibXR::List();

#ifndef LIBXR_NOT_SUPPORT_MUTI_THREAD

      auto thread_handle = Thread();
      thread_handle.Create<void *>(nullptr, RefreshThreadFunction, "libxr_timer_task",
                                   512, Thread::Priority::HIGH);
#endif
    }

    auto fun = [](ControlBlock &block)
    {
      if (!block.enable_)
      {
        return ErrorCode::OK;
      }

      block.count_++;

      if (block.count_ >= block.cycle_)
      {
        block.count_ = 0;
        block.Run();
      }

      return ErrorCode::OK;
    };

    list_->Foreach<ControlBlock>(fun);
  }

◆ RefreshThreadFunction()

static void LibXR::Timer::RefreshThreadFunction ( void * )

inlinestatic

定时器管理线程函数 Timer management thread function

Parameters

unused 未使用参数 Unused parameter

该线程持续运行，定期刷新任务列表，并确保任务按时执行。 Thread::SleepUntil 方式用于精确调度。

This thread runs continuously, periodically refreshing the task list and ensuring timely task execution. Thread::SleepUntil is used for precise scheduling.

Definition at line 135 of file timer.hpp.

  {
    TimestampMS time = Thread::GetTime();
    while (true)
    {
      Timer::Refresh();
      Thread::SleepUntil(time, 1);
    }
  }

◆ RefreshTimerInIdle()

void LibXR::Timer::RefreshTimerInIdle ( )

static

在空闲时刷新定时器 Refreshes the timer during idle time

Definition at line 16 of file libxr_system.cpp.

                                    {
  static bool in_timer = false;
  if (in_timer) {
    return;
  }

  static auto last_refresh_time = Timebase::GetMilliseconds();

  if (last_refresh_time == Timebase::GetMilliseconds()) {
    return;
  }

  in_timer = true;
  last_refresh_time = (last_refresh_time + 1);
  Timer::Refresh();
  in_timer = false;
}

◆ Remove()

static void LibXR::Timer::Remove ( TimerHandle handle )

inlinestatic

删除定时任务 Removes a periodic task

Parameters

handle 任务句柄 Timer handle to remove

该方法删除已注册的定时任务，并确保任务列表完整性。若 handle->next_ 为空，则会触发 ASSERT 断言。

This method removes a registered periodic task while ensuring the integrity of the task list. If handle->next_ is null, it triggers an ASSERT assertion.

Definition at line 158 of file timer.hpp.

  {
    ASSERT(handle->next_);
    list_->Delete(*handle);
  }

◆ SetCycle()

static void LibXR::Timer::SetCycle	(	TimerHandle	handle,
		uint32_t	cycle
	)

inlinestatic

设置定时任务的周期 Sets the cycle of a periodic task

Parameters

handle	任务句柄 Timer handle to modify
cycle	任务周期（毫秒） New cycle time (milliseconds)

Definition at line 117 of file timer.hpp.

  {
    handle->data_.cycle_ = cycle;
  }

◆ Start()

static void LibXR::Timer::Start ( TimerHandle handle )

inlinestatic

启动定时任务 Starts a periodic task

Parameters

handle 任务句柄 Timer handle to start

Definition at line 102 of file timer.hpp.

102{ handle->data_.enable_ = true; }

◆ Stop()

static void LibXR::Timer::Stop ( TimerHandle handle )

inlinestatic

停止定时任务 Stops a periodic task

Parameters

handle 任务句柄 Timer handle to stop

Definition at line 109 of file timer.hpp.

109{ handle->data_.enable_ = false; }

Field Documentation

◆ list_

LibXR::List* LibXR::Timer::list_ = nullptr

inlinestatic

定时任务列表 List of registered tasks

Definition at line 238 of file timer.hpp.

◆ priority_

LibXR::Thread::Priority LibXR::Timer::priority_

inlinestatic

线程优先级 Thread priority

Definition at line 242 of file timer.hpp.

◆ stack_depth_

uint32_t LibXR::Timer::stack_depth_

inlinestatic

线程栈深度 Thread stack depth

Definition at line 243 of file timer.hpp.

◆ thread_handle_

Thread LibXR::Timer::thread_handle_

inlinestatic

定时器管理线程 Timer management thread

Definition at line 240 of file timer.hpp.

The documentation for this class was generated from the following files:

src/system/timer.hpp
system/None/libxr_system.cpp
system/WebAsm/libxr_system.cpp
